Product Description：

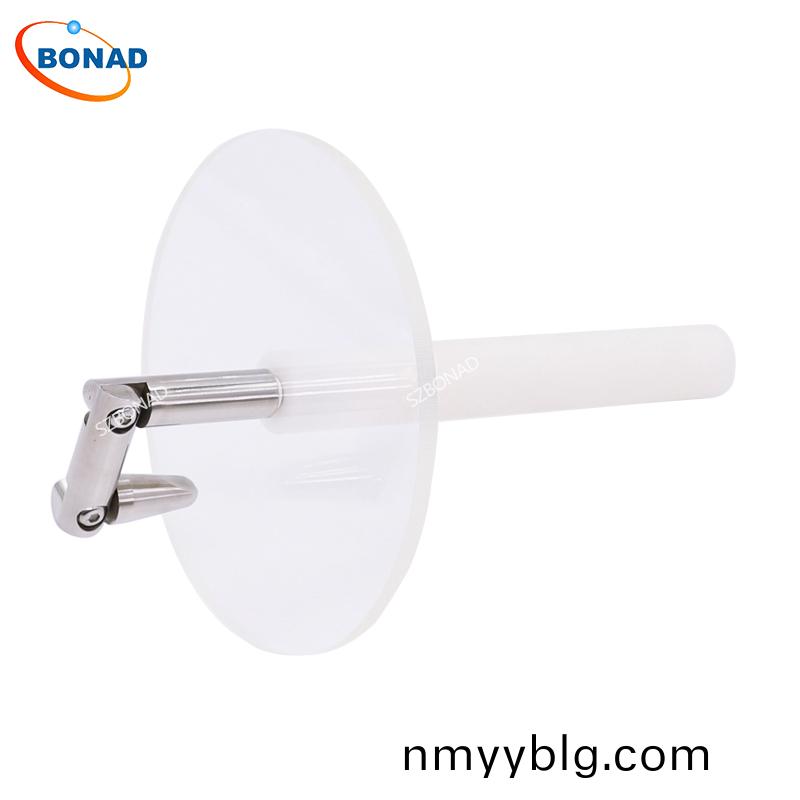

Jointed Test Finger Probe with Diameter 125 mm Circular Stop Face
Model:BND-BD125
This probe is intended to verify the basic protection against access to hazardous parts. It is also used to verify the protection against access with a finger. For blenders, it has a circular stop face with a diameter of 125 mm, the distance between the tip of the test finger and the stop face being 100 mm.
Standard:
IEC60335-2-14|EN60335-2-14|GB4706.30 IEC60335-2-14|EN60335-2-14
Specification:
| Test finger length | 100 mm |
| Curved length | 30 / 30 / 40 mm |
| Material | stainless steel and nylon |
| Dam-board Diameter | 125mm |
| Reference | IEC 60335-2-14 20.2 |
